American Type

WL600F

600W 60Hz model: 130 L/min and 9 m of head. Catalog data matches the WL600B and WL600D; the suffix marks a construction variant confirmed by the factory.

Power: 600 W
Max head: 9 m
Max flow: 130 L/min

Get a Quote Download Catalog

WL600B, WL600D and WL600F. The 2026 catalog prints one parameter and packing set for the models in this group. The construction difference between the suffixes is confirmed by the factory for each order.

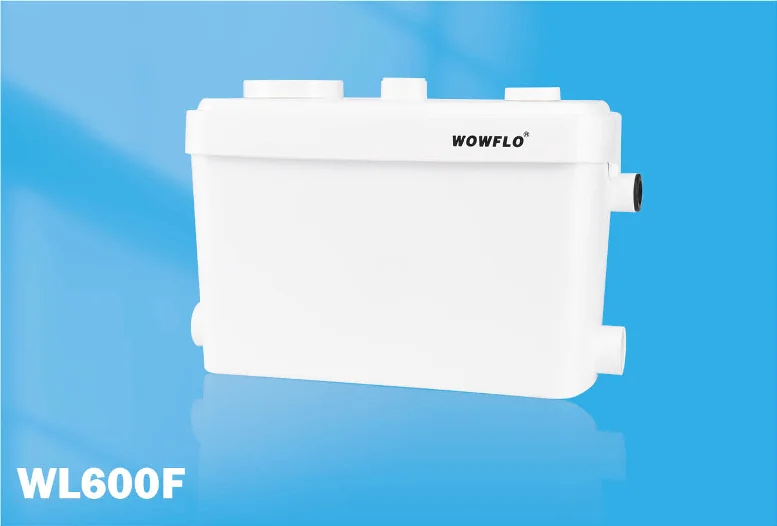

WL600F American Type unit, product photo from the 2026 catalog

Product photo of the WL600F, taken from 2026 English catalog, p. 16.

02Technical data

Parameter table

Every value below is the figure printed for this model in the 2026 catalog. Fields the catalog leaves blank are omitted here rather than estimated.

Voltage

110V

Frequency

60Hz

Power input (P1)

600 W

Motor speed

3450 RPM

Insulation class

Class F

Noise level

< 45 dB

Protection class

IP55

Maximum flow

130 L/min

Maximum head

9 m

Start level

65 mm

Stop level

35 mm

Source: 2026 English catalog, p. 16

Inlet and outlet sizes, and any field the catalog leaves blank, are issued with the order-specific technical file.

03Packing

Packing and container loading

Carton quantity, weights and container loading for the WL600F, transcribed from 2026 English catalog, p. 16.

Units per carton

1 pc / carton

Gross weight

7.5 kg

Net weight

6.5 kg

Carton size

46.2 × 25.4 × 35.1 cm

20GP loading756 pcs

40GP loading1,556 pcs

40HQ loading1,765 pcs

04Structure

Construction points

01
110V / 60Hz motor platform running at 3450 RPM
02
Independent housing designed as a single unit for non-gravity drainage
03
Water and electricity separation: the electrical chamber is isolated from the collection tank
04
Anti-winding protective structure in the impeller path
05
All-stainless steel movement, shaft and impeller assembly
06
High head, large flow and low noise, below 45 dB across the range
07
Float-controlled automatic start and stop at the printed sewage heights

05Installation

Installation conditions

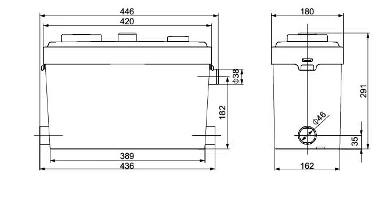

WL600F dimension drawing from the 2026 catalog — Dimension drawing of the WL600F, cropped from 2026 English catalog, p. 16.

Installed where drainage to the sewer cannot rely on gravity; the unit collects toilet, shower, basin and washing machine discharge and pumps it to the main drain.
The inlet must sit above the start level printed for the model, because the float switches the pump on at that height.
The motor and electrical parts sit in a chamber separated from the collection tank, and the enclosure class printed for the model applies to the unit.

06Fit

Where it fits, and where it does not

Suited to

Basement toilets, showers and utility sinks
Kitchen and laundry discharge where solids may be present
Renovation projects without gravity drainage to the sewer

Check before selection

Discharge line length, vertical lift and solids content must be checked against the published flow and head curve before selection. A maximum water temperature is printed for the WL550A only; the other WL models do not list one.
